SCHMIDT® HydroPneumaticPress with force / stroke monitoring
SCHMIDT® HydroPneumaticPress with continuous force / stroke monitoring are offered as complete systems with the control unit SCHMIDT® PressControl 700 and 7000. The special feature of these systems is the sensor technology and signal amplification integrated in the press slide. These signals are evaluated in real time.
SCHMIDT® Manual Presses 300 Series with Process Monitoring
Process reliability, force/stroke monitoring of the joining process and EN ISO-compatible documentation of the results are becoming the major factors for small and medium production within the manual workplace.
The SCHMIDT® ManualPress 300 Series system with SCHMIDT® PressControl 700 includes: Integrated reliable measuring technology
High resolution of the obtained process
SCHMIDT® PneumaticPress direct-acting with constant force progression
The product family SCHMIDT® PneumaticPress direct-acting with constant force progression is a modular system which optimally meets the requirements in the areas of forming, joining and assembly in the press force range from 1.6 to 43 kN.
In combination with the SCHMIDT® PressControl 75 or 700 control system, the presses
SCHMIDT® PneumaticPress direct-acting with force / stroke monitoring
SCHMIDT® PneumaticPress with force / stroke monitoring are offered as complete systems with the SCHMIDT® PressControl 700 and 7000. These systems are characterized by sensors and signal amplification integrated in the press head. These signals are evaluated in real time.
SCHMIDT® PneumaticPress toggle lever
The SCHMIDT® PneumaticPress product family in toggle lever design with maximum force at the stroke end is a modular system that optimally meets the requirements from the areas of forming, joining and assembly in the press force range from 15 to 60 kN.
In combination with the SCHMIDT® PressControl 75 or
SCHMIDT® PRC DataBase
SCHMIDT® PRC DataBase is an optional software for the modular control system SCHMIDT® PressControl 7000 or SCHMIDT® PressControl 700. The database software is used for storing and analysing the data of the control system – process specifications and process results – particularly under quality assurance aspects.
SCHMIDT® PRC DataXchange
Bi-directional data exchange with higher-level controls
The PRC DataXchange interface is available for communication between a SCHMIDT® press system and a higher-level control system.
DataXchange Input
Parameter-Transfer to PressControl Dynamic adaptation of processes Control type (force, stroke, ext. signal, relative position, …)
Position
Speed
Force
Motion block change (stopping, flying, ext. trigger signal)
Dwell time
DataXchange Output
Data-Transfer to Master
SCHMIDT® PRC FileXchange
Safe exchange of process data
In addition to data exchange within an automation solution via Fieldbus, data exchange can also be performed via data files. For every press process all relevant process results, tolerances, observer, and parameters are written into a file whose format and content can be configured via an

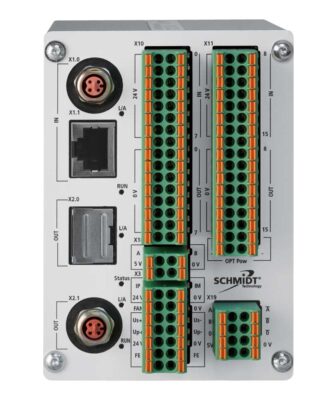

SCHMIDT® PRC Gateway
SCHMIDT® PressControl 700 and 7000 communicate with higher-level control systems via a standardized interface program. All relevant system states as well as bad part detection performed by simple signal exchange from one control to the other.
SCHMIDT® PRC MoveTol – offset of tolerance
Assembly parts are subject to certain manufacturing tolerances. Height deviations of the parts result in an offset of the curves in the curve window. The curves of the parts with larger tolerance deviations can then lie outside the created tolerance limits and are declared as bad parts.
The height tolerances of
SCHMIDT® PRC OpenFieldBus
OpenFieldBus allows completely custom specification and programming of driving profiles and sequences by a master control as well as the bidirectional transmission of all relevant data. To implement individual requirements in the press process, the complete command set can be accessed. At the same time, the advantages of the integrated
SCHMIDT® Press Base (PU)
SCHMIDT® Press Base PU 20 and PU 40 for a safe and vibration-proof installation of all SCHMIDT® Press Systems.
Both press bases are available in two versions:
Fixed columns with height adjustable from 780 to 1200 mm
Electrically height-adjustable from 725 to 1075 mm Infinitely variable parameterisation with PressControl 700/7000
Storage of
