SCHMIDT® ElectricPress

Electric press with high energy efficiency in assembly technology

The use of electric drives instead of pneumatic or hydropneumatic driven cylinders is a modern advancement in assembly technology. SCHMIDT Technology combined its proven rack & pinion and ServoPress experience to create a new electric drive technology, providing high efficiency, full programmability and precision in a flexible pressing system.

download PDF

electrical presses
ElectricPress 43

SCHMIDT® ElectricPress 43, without force-displacement monitoring, is the alternative to pneumatic presses for use in the small to medium force range, e.g. in the industrial branches:

Automobile construction / motor vehicle
  • Ignition key assembly
  • Lock assembly
Electronics, electrical engineering
  • Mounting of spacer bolts in the circuit board
  • Assembly of cable / cable lug
Textile and leather
  • Beading ring eyelets in leather straps
  • Punching / cutting of textile contours

4 kN force FS3 25 % 10 sec.
2.5 kN force F 100 % ED
100 mm ram stroke
≤ 1 µm resolution drive control
200 mm/s ram speed (max.)

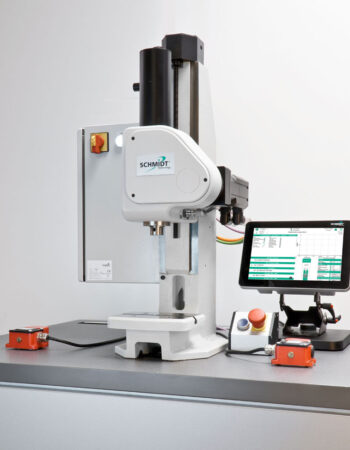

ElectricPress 343 PressControl 700 PU20

SCHMIDT® ElectricPress 343 in combination with SCHMIDT® PressControl 700 becomes a force-displacement monitoring press system, e.g. in the following industries

Automotive / safety engineering
  • Assembly of radar distance sensors
  • Assembly of airbag control sensors
Watches / Jewellery
  • Assembly of bracelet links
  • Setting / beading of rhinestones
Computer technology
  • Pressing pins into hard disk housings
  • HDD housing assembly

4 kN force FS3 25 % 10 sec.
2.5 kN force F 100 % ED
100 mm ram stroke
≤ 1 µm resolution drive control
200 mm/s ram speed (max.)

elektrische Presse mit Kraft-Weg-Überwachung bei der Montage

SCHMIDT® ElectricPress 45, without force-displacement Monitoring, the alternative to pneumatic presses for use in the medium force range, e.g. in the branches of industry:

Automotive industry
  • Flanging lampholder sockets
  • Compression of ceramic granules for spark plugs
White goods
  • Bending chassis braces
  • Embossing nameplates
Motorcycle
  • Mounting bearing in aluminum rim
  • Assembly of motor housing

10 kN force FS3 25 % 10 sec.
6 kN force F 100 % ED
150 mm ram stroke
≤ 1 µm resolution drive control
200 mm/s ram speed (max.)

ElectricPress 345 + PressControl 700

SCHMIDT® ElectricPress 345 is used in combination with the SCHMIDT® PressControl 700 for the force-displacement-monitoring press system, e.g. in industries

E-mobility
  • Gearbox assembly for e-bikes
  • Assembly of battery cores
Medical technology
  • Riveting surgical scissors
  • Assembly of dental instruments
Drive technology
  • Rotor-stator assembly
  • Gear-axle assembly

10 kN force FS3 25 % 10 sec.
6 kN force F 100 % ED
150 mm ram stroke
≤ 1 µm resolution drive control
200 mm/s ram speed (max.)

ElectricPress 345 mit SmartGate

SCHMIDT® ElectricPress 347 is used in combination with the SCHMIDT® PressControl 700 for the force-displacement monitoring press system, e.g. in the branches of industry

Automotive
  • Assembly of injection systems
  • Fitting assembly
Home and building technology
  • Installation of meter systems
  • Assembly of pump systems
Optics
  • Mounting glass lenses in eyepieces
Medical technology, pharmacy
  • Straightening / shaping of surgical instruments
  • Cutting pharmaceutical filters

20 kN force FS3 25 % 10 sec.
13 kN force F 100 % ED
150 mm ram stroke
≤ 1 µm resolution drive control
100 mm/s ram speed (max.)

Press type4334345345347
Force F max. S3 25 % 10 sec 1) 4 kN4 kN10 kN10 kN20 kN
Force F 100 % duty cycle 2) 2.5 kN2.5 kN6 kN6 kN13 kN
Ram stroke100 mm100 mm150 mm150 mm150 mm
Speed max.200 mm/s200 mm/s200 mm/s200 mm/s100 mm/s
Projection129 mm129 mm129 mm129 mm160 mm
Ram bore10H710H720H720H720H7

1) Temporary peak load
2) Nominal force in continuous operation

more details: https://www.schmidttechnology.de/en/product-category/machines/electricpress-machines

Characteristics

  • Simple parameterisation minimises commissioning time
  • Quick changeover procedures due to retrievable operating profiles
  • Increased flexibility
  • Cost reduction of tools and their wear due to free, precise positioning.
  • The low noise level provides a stress-free working environment.
  • The design-related non-existent stick-slip effect optimises the assembly process compared to pneumatic drives, especially at low speeds.
