SCHMIDT® Press Base (PU)

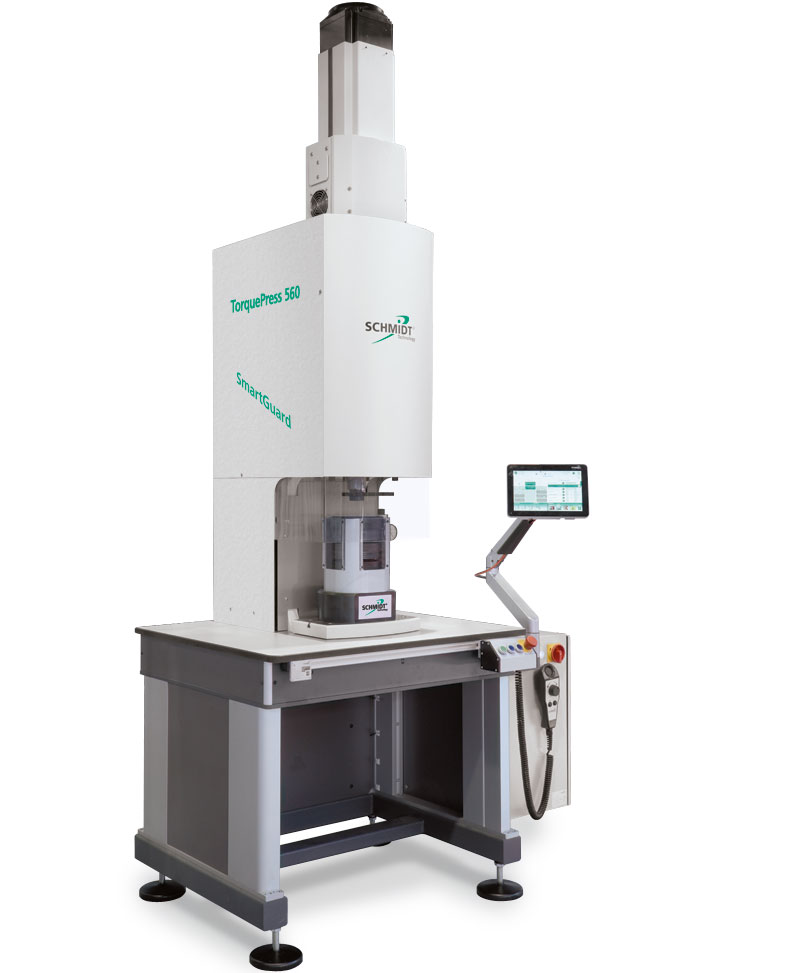

SCHMIDT ® Press Base PU 20 and PU 40 for a safe and vibration-proof installation of all SCHMIDT ® Press Systems.



Both press bases are available in two versions:

  • Fixed dimension Z on stand PU20, height of the press table depends on frame type (see dimension K in the respective press chapters). Example: frame type 3 for press No. 25

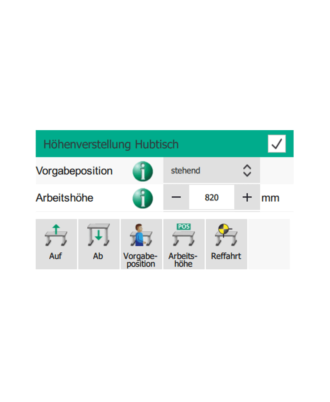

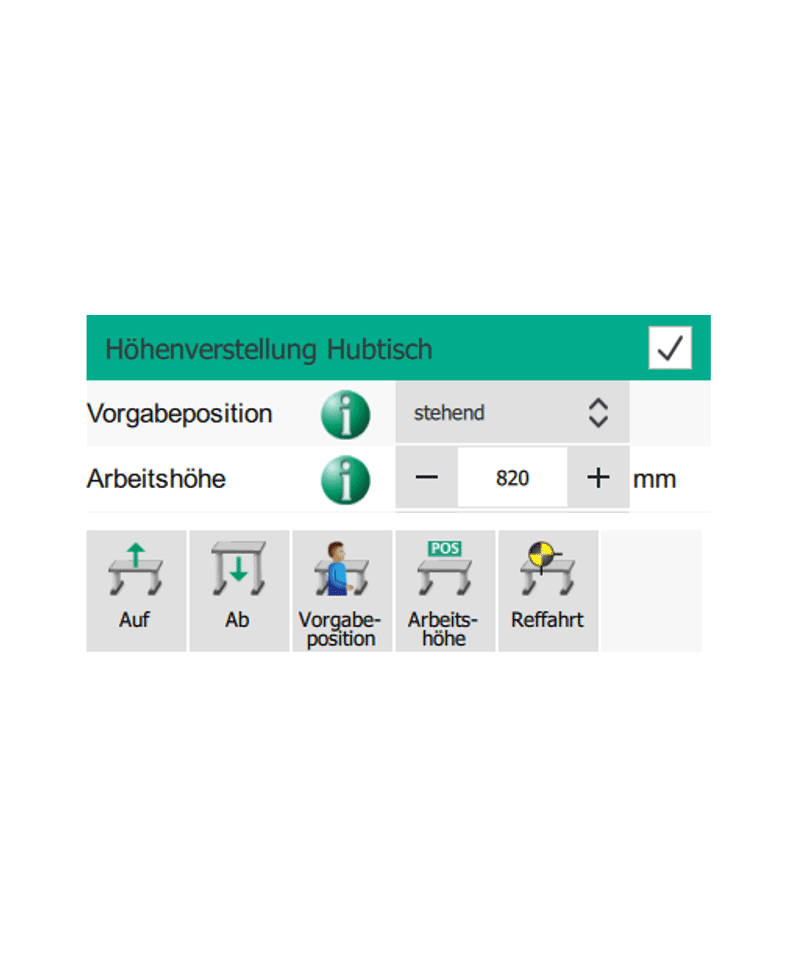

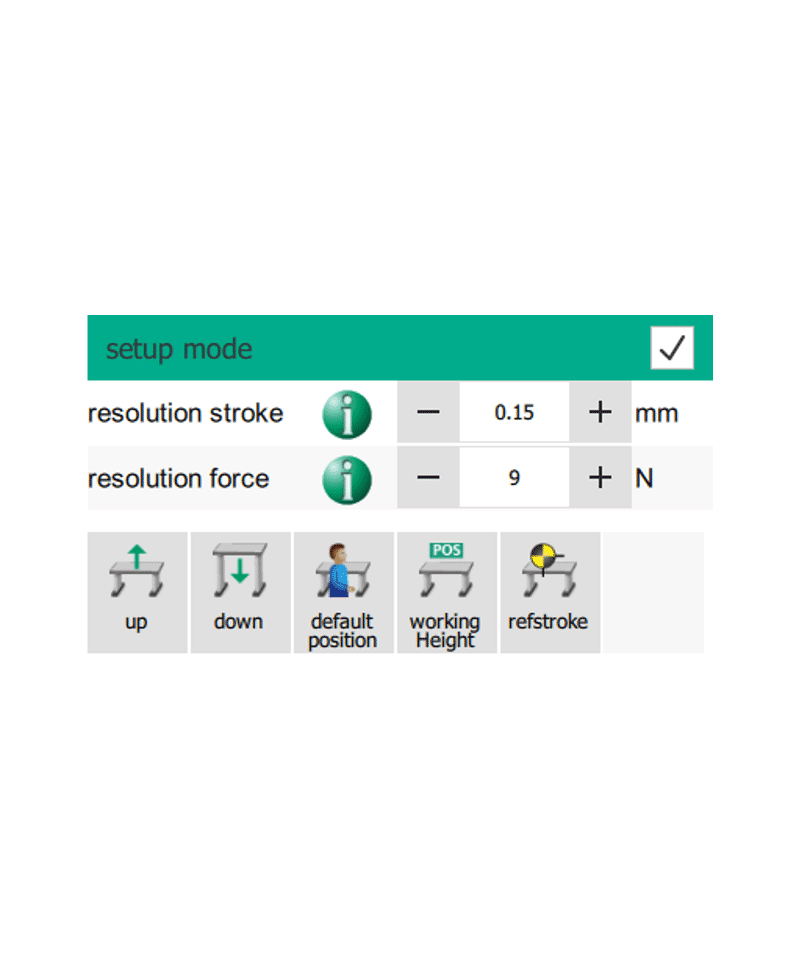

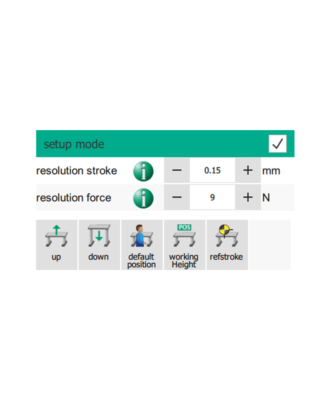

  • Infinitely variable motorized height adjustment from 725 to 1075 mm (28.5" – 42.3")

Technical Data

Technical DataPU 20 (2 columns)PU 40 (4 columns)
Fixed columnsHindividually780 – 1200 mm780 – 1200 mm
Motorized variable columnsZstepless725 – 1075 mm725 – 1075 mm
Lifting capacitykg6001200
Width x depthon requeston request
Foot restyes
