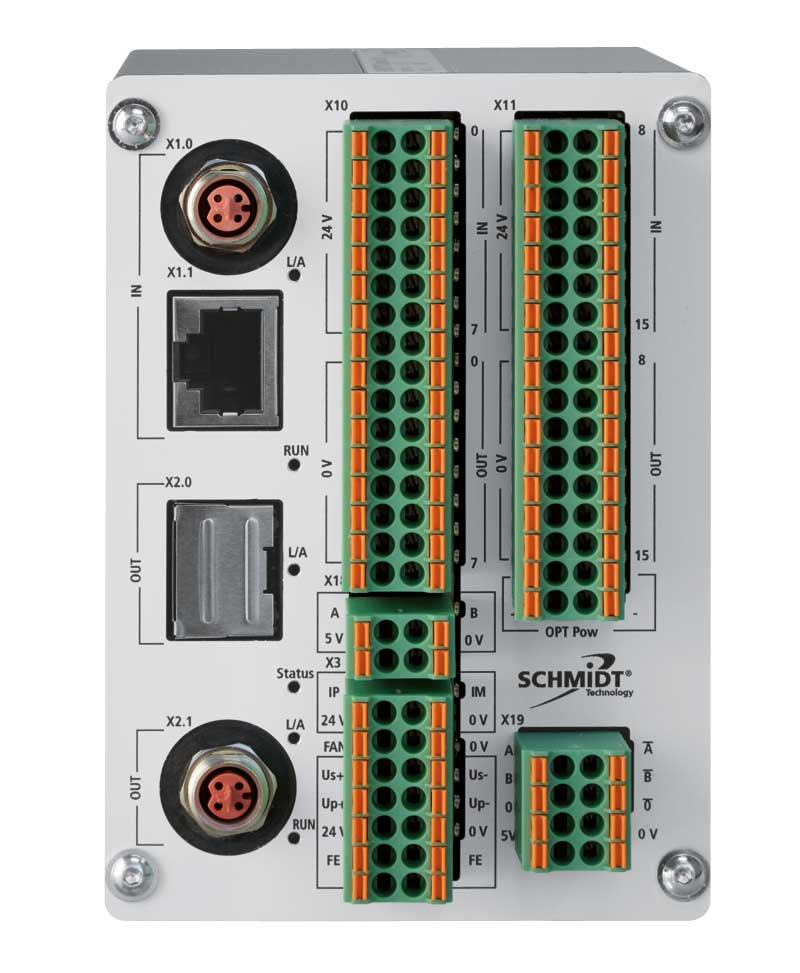

SCHMIDT® PressControl 700 and 7000 communicate with higher-level control systems via a standardized interface program. All relevant system states as well as bad part detection performed by simple signal exchange from one control to the other.


  • EtherCAT-connections to PressControl (Master) und PDA (Slave), with 24 V-power supply via EtherCAT-P
  • 24 V-Interface with 16 inputs and 16 outputs (up to 0.5 A / output)
  • short circuit proof and overload protected status-LEDs for EtherCAT-Bus and In- / outputs
  • encoder-interface
  • interface for external hand wheel as handheld
  • top-hat rail mounting
