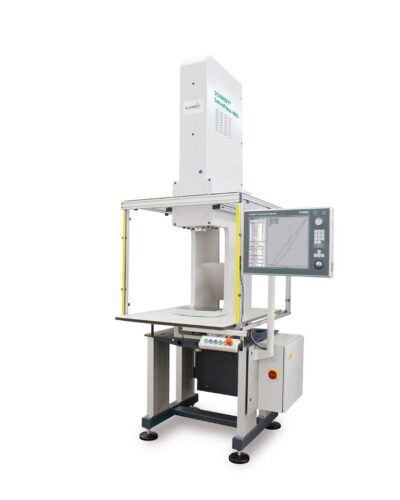

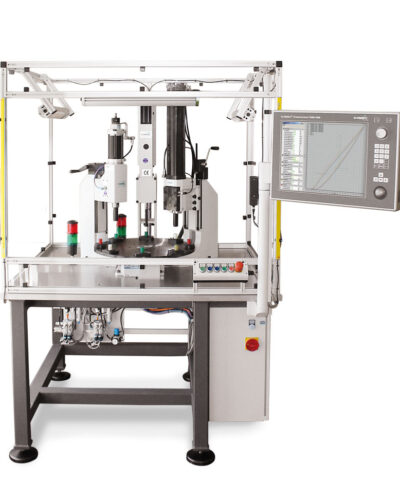

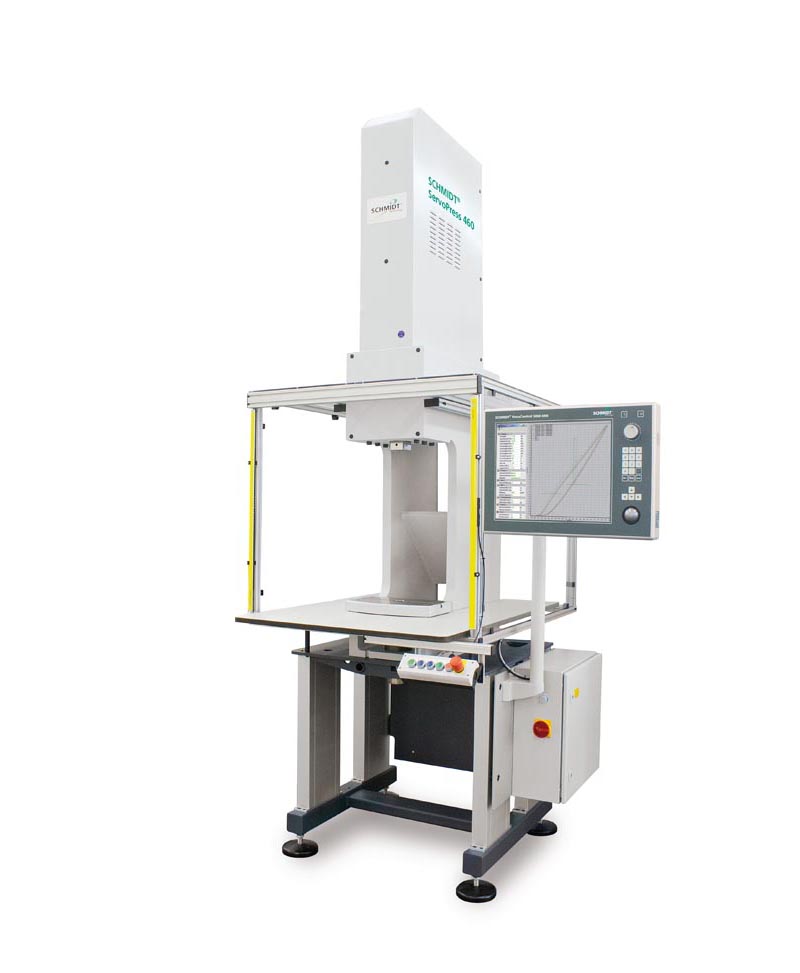

SCHMIDT® Presses Automation components and complete systems

SCHMIDT Technology has a wide range of accessories for setting up individual press stations. The automation components are specially designed for the specific requirements of press applications, with the modularity and combinability based on the range of SCHMIDT® Press systems is matched. All components are fully developed and available from stock at short notice.

Safety concepts for single workstations

Our complete systems with control and safety technology are EC type-tested as standard. Whether protective housing SCHMIDT® SmartGuard and SmartGate or classic safety concepts such as light curtain or two-hand release as well as one of our press bases – we can provide individual workstations on your adjust needs individually.

PDF download

Button-Katalog-Zwischentitel_Sicherheitskonzept-Pressen

Safety concepts with EC type examination

Two-hand releases

Two-hand release
Simple triggering by means of two buttons to be pressed at the same time.

SCHMIDT SmartGuard

SCHMIDT® SmartGuard
Patented safety with a slim design, fast component feeding, protection against intervention as well as splinter protection from chipping of parts.

SCHMIDT SmartGate

SCHMIDT® SmartGate
Patented safety with freely programmable protective doors for large presses, fast component feeding, protection against intervention as well as splinter protection from chipping of parts.

Light curtain

Light Curtain
In the event of unauthorized interference, the pressing process stops automatically.

Video-Thumbnail SmartGuard

SCHMIDT® Presses product catalog

Find out everything about the various functions of our presses.
download PDF
