Features
* Cross hole with locking screw in the press table for safe fixture of tool
* Accurate adjustable ram position via fine adjustment (type 33)
* T-slot with set screw in fixture mounting plate to secure bottom tool
The SCHMIDT® PneumaticPress product family in toggle lever design with maximum force at the stroke end is a modular system that optimally meets the requirements from the areas of forming, joining and assembly in the press force range from 15 to 60 kN.
In combination with the SCHMIDT® PressControl 75 or 700 control system, the presses become EC type-tested, CE-compliant workstations, optionally with process monitoring.
The press systems can be used in single cycle as well as in automatic mode.
* Cross hole with locking screw in the press table for safe fixture of tool
* Accurate adjustable ram position via fine adjustment (type 33)
* T-slot with set screw in fixture mounting plate to secure bottom tool

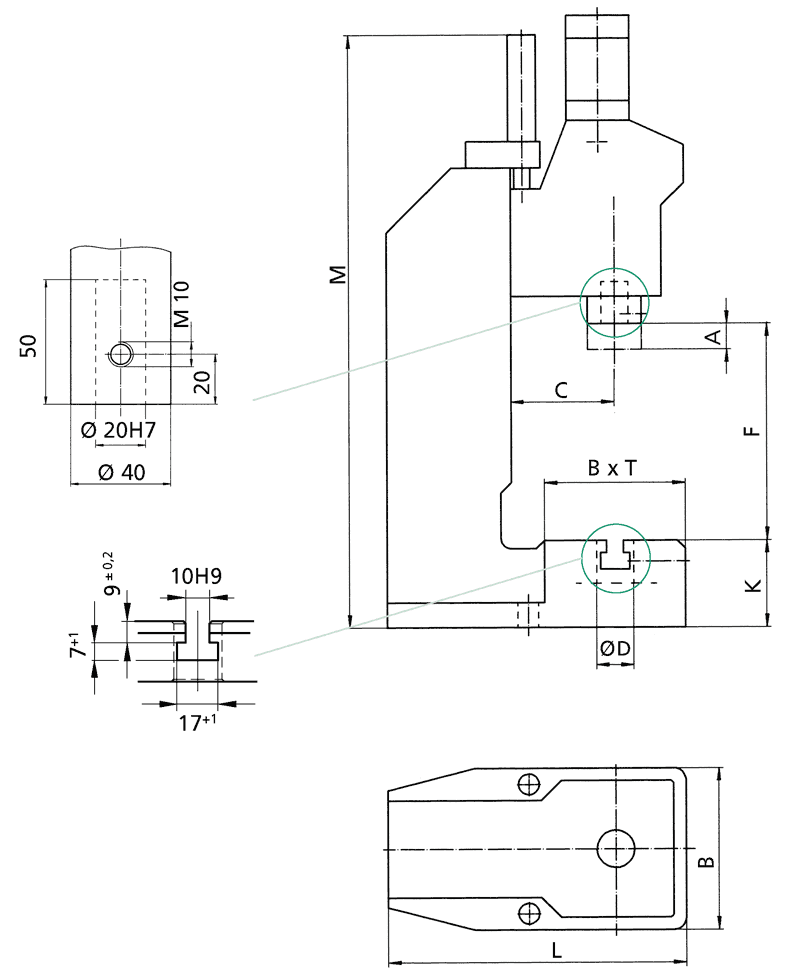

Press type | 32 | 33 | ||
---|---|---|---|---|
Working stroke | A | mm | 0 – 12 4 – 40 6 – 60 | 0 – 12 4 – 40 |
Nominal force at 6 bar | kN | 15 | 15 | |
Throat depth | C | mm | 86 | 86 |
Throat depth frame O | mm | 111, 131 | 111, 131 | |
Additional fixture mounting plate suitable for throat depth frame | O | O | ||
Ram bore | Ø | mm | 20H7 | 20H7 |
Ram diameter | Ø | mm | 40 | 40 |
Fine adjustment | • | |||
Working height 1) | F | |||
Frame No.. 3 | mm | 80 – 205 | ||
Frame No. 5 | mm | 80 – 350 | 35 – 295 | |
Frame No. 2-600 o | mm | 200 – 575 | 155 – 520 | |
Frame No. 2-1000 o | mm | 340 – 1020 | 290 – 970 | |
Weight | ca. kg | 45 | 50 |
Frame overview | Press type | Frame height M (mm) | Table size W x D (mm) | Table bore D (Ø mm) | Table height K (mm) | Mounting Surface W x L (mm) |
---|---|---|---|---|---|---|
No. 3 | 32 | 540 | 150 x 110 | 20H7 | 60 | 150 x 260 |
No. 5 | 32, 33 | 536 | 185 x 110 | 20H7 | 60 | 185 x 280 |
Frame No. 2-600 o | 32, 33 | 974 | 200 x 160 | 20H7 | 98 | 200 x 290 |
Frame No. 2-1000 o | 32, 33 | 1410 | 200 x 160 | 20H7 | 98 | 200 x 290 |
Options |
---|
• Series standard with no additional charge O Additional charge may applies |
1) Typical values; can deviate by ± 3 mm due to casting and production tolerances |
Special designs |
Nickel plated – cast parts are electroless nickel plated, steel components black oxide finished, aluminum anodized, precision steel surfaces are untreated |
Custom Paint – press and column can be painted to customer's color specification |
Bores for adapting tooling – customer specific sizes can be supplied |

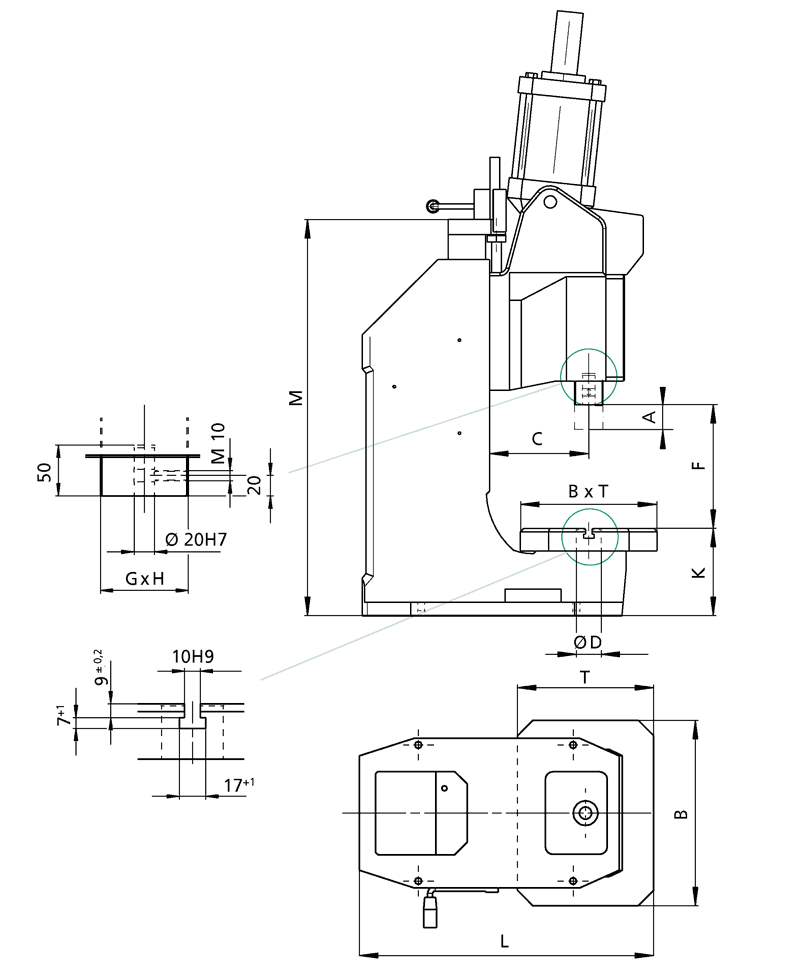

Press type | 34 | 36 | ||
---|---|---|---|---|
Working stroke | A | mm | 0 – 12 4 – 40 6 – 60 | 0 – 12 4 – 40 6 – 60 |
Nominal force at 6 bar | kN | 28 | 60 | |
Throat depth | C | mm | 131 | 160 |
Throat depth frame O | mm | 151 | 185 | |
Fixture mounting plate suitable for throat depth frame | O | O | ||
Ram bore | Ø | mm | 20H7 | 20H7 |
External ram dimensions | G x H | mm | 36 x 63 | 46 x 86 |
Working height 1) | F | |||
Frame No.34 | mm | 100 – 250 | ||
Frame No. 301 | mm | 160 – 400 | ||
Frame No. 301 – 500 o | mm | 310 – 550 | ||
Frame No. 35 | mm | 100 – 250 | ||
Frame No. 35 – 500 o | mm | 150 – 500 | ||
Frame No. 35 – 600 o | mm | 250 – 600 | ||
Weight | ca. kg | 90 | 150 |
Frame overview | Press type | Frame height M (mm) | Table size W x D (mm) | Table bore D (Ø mm) | Table height K (mm) | Mounting Surface W x L (mm) |
---|---|---|---|---|---|---|
No. 34 | 34 | 630 | 200 x 160 | 25H7 | 111 | 200 x 370 |
No. 301 | 34 | 830 | 250 x 200 | 40H7 | 145 | 250 x 460 |
No. 301 – 500 | 34 | 990 | 250 x 200 | 40H7 | 145 | 250 x 480 |
Special fixture mounting plate with 3 longitudinal slots o | 300 x 220 400 x 230 | 40H7 | ||||
No. 35 | 36 | 700 | 300 x 220 | 40H7 | 141 | 300 x 480 |
No. 35 – 500 | 36 | 990 | 300 x 220 | 40H7 | 166 | 300 x 560 |
No. 35 – 600 | 36 | 1110 | 300 x 220 | 40H7 | 166 | 300 x 585 |
Special fixture mounting plate with 3 longitudinal slots o | 355 x 225 400 x 280 | 40H7 |
Options |
---|
O variant with surcharge |
1) Typical values; can deviate by ± 3 mm due to casting and production tolerances |
Special designs |
Nickel plated – cast parts are electroless nickel plated, steel components black oxide finished, aluminum anodized, precision steel surfaces are untreated |
Custom Paint – press and column can be painted to customer's color specification |
Bores for adapting tooling – customer specific sizes can be supplied |
