SCHMIDT® PneumaticPress direct-acting with force / stroke monitoring

SCHMIDT® PneumaticPress with force / stroke monitoring are offered as complete systems with the SCHMIDT® PressControl 700 and 7000. These systems are characterized by sensors and signal amplification integrated in the press head. These signals are evaluated in real time.

Features

  • Direct forces are measured due to the force sensor integrated­ in the ram. Insensitive against side loads
  • Force and displacement sensors are immune to EMI and environ-mental contamination
  • A measuring data amplification integrated in the press head provides short transmission paths of unamplified signals
  • Anti-rotational square ram with two fully adjustable guiding gibs for precise work and for non-guided tools (not for type 320, which incorporates special roller guided anti-rotation protection for the ram
  • Weld constructed steel frames to minimize frame flex.

1.6 to 43 kN Technical Data

Press type  320323-1K323-2K327-2K327-3K329-2K329-3K329-4K
Working strokeAmm100
50, 75, 100, 125, 150

50, 75, 100
50, 75, 100, 125, 150
50, 75, 10050, 75, 100, 150
50, 75, 100, 125, 150
50, 75, 100
Nominal force at 6 barkN1,64,28,41320223243
Resolution, process data acquisition
– stroke
– force

µm/inc
N/inc

5
0,5

5
1,25

5
2,5

5
4

5
6,25

5
6,25

5
10

5
12,5

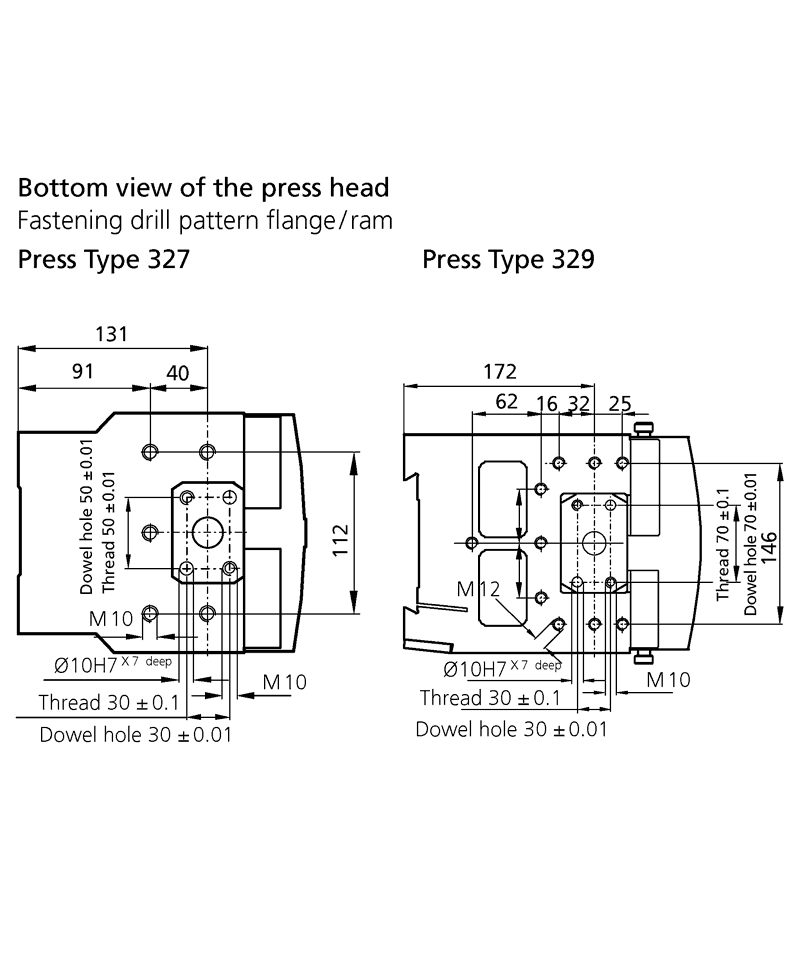

Throat depthCmm129131131131131160160160
Throat depth framemm169 / 209 / 249151151151151
Fixture mounting plate suitable for throat depth frameOOOO
Ram boreØmm20H720H720H720H720H720H720H720H7
External ram dimensionsG x Hmmø 4070 x 5070 x 5070 x 5070 x 5090 x 6090 x 6090 x 60
Working height 1)F
Frame No. 7-420mm50 – 420
Frame No. 7-600 omm85 – 600
Frame No. 301mm140 – 350140 – 350140 – 350140 – 350
Frame No. 301-500 omm310 – 500310 – 500310 – 500310 – 500
Frame No. 329mm130 – 300130 – 300130 – 300
Frame No. 329-460 omm190 – 460190 – 460190 – 460
Weight (standard)ca. kg70170170170170320325330
Frame overview Press type Frame height
M (mm)
Table size
W x D (mm)
Table bore
D (Ø mm)
Table height
K (mm)
Mounting Surface
W x L (mm)
No. 7-420320740180 x 15020H790220 x 362
No. 7 – 600320960180 x 28020H7110220 x 465-505 3)
No. 301323, 327830250 x 20040H7145250 x 460
No. 301 – 500323, 327990250 x 20040H7145250 x 480
Special fixture mounting plate with 3
longitudinal slots2) o
300 x 220
400 x 230
40H7
No. 329329810300 x 23040H7147300 x 550
No. 329-460329990300 x 23040H7147300 x 620
Special fixture mounting plate with 3
longitudinal slots2) o
400 x 280
500 x 280
40H7
Optionen
O Additional charge applies
1) Typical values; can vary ± 3 mm due to casting and production tolerances
2)With Press type 320 only in combination with frame type No. 7-600 with 168 mm, 208 mm or 248 mm
Special designs
Nickel plated – cast parts are electroless nickel plated, steel components black oxide finished, aluminum anodized, precision steel surfaces are untreated
Custom Paint – press and column can be painted to customer's color specification
Bores for adapting tooling – customer specific sizes can be supplied
