SCHMIDT® PneumaticPress

Maximum pressing force from 1.6 kN to 60 kN

The SCHMIDT® PneumaticPress range builds on a modular concept and can generate up to 60 kN. They are ideally suited for joining, assembly and forming applications.
With the addition of the SCHMIDT® PressControl 75 or 700 and the optional process monitoring, these presses become EC type-approved, CE-conformed workstations. Therefore these press systems can be used in either single cycle or automatic mode.

PDF download

HydroPneumaticPresses
PneumaticPress direktwirkend

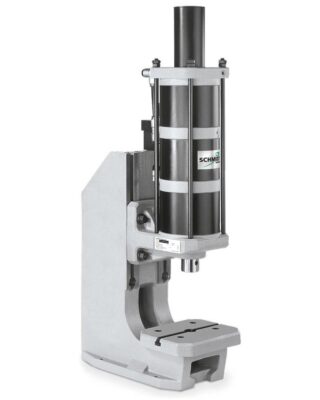

SCHMIDT® PneumaticPress direct-acting
Constant force curve over the entire stroke; 1.6 to 43 kN

PneumaticPress Kniehebel

SCHMIDT® PneumaticPress Toggle Press
Maximum force at the end of the stroke; up to 60 kN

SCHMIDT® PneumaticPress with force/stroke monitoring
Monitored, constant force curve; 1.6 to 43 kN

Characteristics

  • Optimal adaptation to individual requirements due to its modular design.
  • Process optimization by means of adjustable parameters (stroke, force, speed).
  • Easy adaptation to different tool and part heights because of simplistic stroke and height adjustment.
  • Easy and exact positioning of tools through centric fitting bore and partly cross bore with fixing screw in the ground press table.
  • Additional accident protection when using heavy tools through (optional) ram hold-up device according to DIN EN 13736.
  • Optional end position sensing via cylinder switch as signal generator for peripheral processes.
  • Low noise level (< 75 dBA)
  • Double-acting, low-wear cylinders with low air consumption for the return stroke. The return stroke takes place via a cylinder chamber as standard.
  • High flexibility thanks to short changeover times.
  • Durable and precise thanks to maintenance-free, Teflon-coated bearings.
  • Ground ram
  • Precise, double ram bearings
