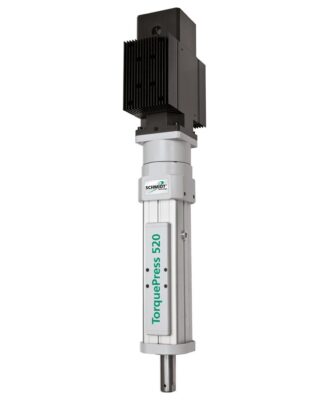

Compact, highly efficient and with a hollow shaft motor
In addition to the ServoPress series, the SCHMIDT® TorquePress is characterized by a number of special features. Among other things, a hollow-shaft torque motor is used, which enables very high press forces with a very high motor torque without additional mechanical transmissions.
Compared to other electric presses, the noise level remains remarkably low under all load conditions. The spindle nut, which is driven directly without the use of additional gears, enables very high levels of efficiency.
Thanks to the hollow shaft motor, the TorquePress is particularly compact and enables short overall lengths.
SCHMIDT® TorquePress are EC type approved in connection with the security technology options SmartGate, SmartGuard and light curtain as well as optionally with the particularly economical 2-hand operation.
Process control behavior
- Distance measurement takes place directly on the ram, which results in extremely high positioning and repeat accuracy.
- Absolute position measuring system, so no reference run is necessary.
- Highly accurate pressing force detection through direct force transmission into the sensors
