SCHMIDT® PressControl 7000 RT with 7000 HMI

The SCHMIDT® PressControl 7000 RT for single workstations for the control and monitoring of pressing and joining processes. In addition to precise assembly tasks, the fast acquisition of extensive process data and bidirectional data exchange is becoming more and more important.

The SCHMIDT® PressControl 7000 RT real-time controller communicates with the process components via the high-performance and fast field bus EtherCAT with a transmission rate of 100 Mbit/s and a transmission speed of 0.5 ms. With this the press control meets the requirements for fast processing of large data volumes. The leap into other fieldbus worlds is realized by using optional fieldbus gateways.


Process visualization takes place directly on the PressControl 700. Via the Ethernet interface, the control communicates with MES systems and external PCs as well as PRC DataBase and PRC FileXchange software.

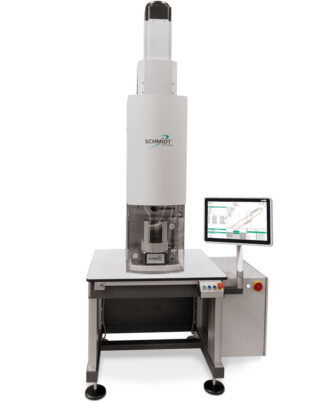

The press control system is optimally designed for SCHMIDT® press systems. Thanks to the integrated PLC, process visualization, the best possible compatibility and performance is achieved. All components are tested and matched to each other in the network and are therefore ready for immediate use.


SCHMIDT® PressControl 7000 HMI

  • 21.5" Full HD multi-touch screen
  • Multi-axis applications can be visualized
  • Setup and setting of parameters via "drag & drop
  • Installation of optional software tools such as SCHMIDT® PRC DataBase or PRC FileXchange is prepared

Technical Data

PressControl 7000 RT
Industrial PC

Intel E3990 processor
2 GB main memory
16 GB on-board Flash (eMMC)
Linux operating system

Interfaces1 x Display Port
2 x USB 2.0
2 x USB 3.0
3 x Ethernet, RJ45 (LAN1 via integrated switch on 3 ports)
1 x Ethernet, RJ45 (LAN2)
1 x EtherCAT, RJ45 Universal fieldbus
Integrated compartment for housing a Hilscher netJACK module
Power supply24 V DC (via 3-pin plug)
Current consumption1 A
Weightapprox. 0.73 kg
Ambient temperature

0 °C … +65 °C

Humidity0 … 90 % relative humidity (not condensing)
IP ratingIP 20; PressControl 7000 RT placed in electrical cabinet
PressControl 7000 HMI
Industrial PCIntel i5-7xxx processor
64 GB CFAST operating system
512 GB HDD data memory
Operating system Windows 10
Monitor21.5'' full HD monitor (1920 x 1080) with capacitive multi-touchscreen
Interfaces1 x HDMI
2 x USB 2.0
2 x GBit Ethernet, M12, X-coded (LAN1, LAN2)
2 x integrated loudspeaker
Power supply24 V DC (via 4-pin M12 plug, T-coded)
Current consumption2 A
Weightapprox. 9.5 kg
Ambient temperature0 °C … +40 °C
Storage temperature-20 °C … +60 °C
Humidity0 … 90 % relative humidity (not condensing)
IP ratingIP 54
AssemblyVESA 75
