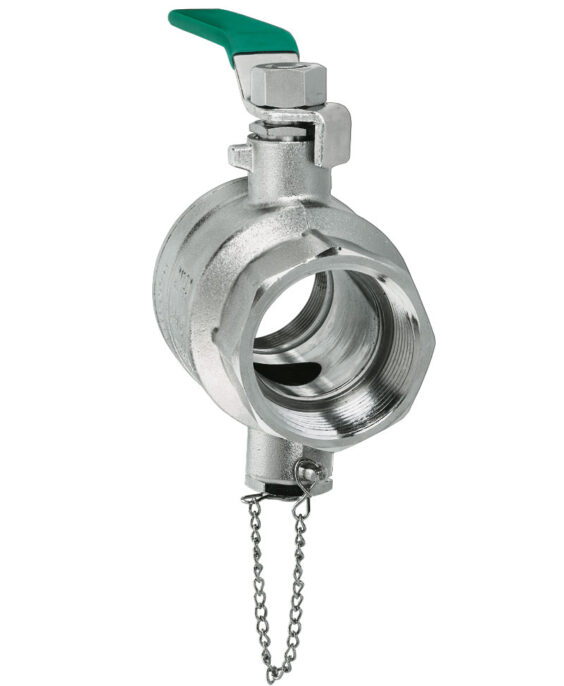

SCHMIDT® Probe Ball Valve

Easy, quick mounting and dismounting of SCHMIDT® flow sensors SS 20.261 and SS 20.600 in pipe systems - without pressure stop



  • Compressed air technology
  • Industrial processes



Ideal flow measurement in pipe systems



If you are planning compressed air networks, suitable measuring points for the flow measurement have to be fixed. The installation of measuring points afterwards is complex and expensive – more than ever, as the pressure must be switched off and by that the equipment ”comes to a standstill”.



The SCHMIDT® Probe Ball Valves are an ideal solution. They complete the SCHMIDT® Flow Sensors with chamber head technology (i.e. SS 20.261, 20.600) and can be installed in different positions in the compression air network. Thus the planning of measurement becomes very easy, flexible and cost-effective. The measuring points that will later be used for the measurement are depending on the connected users. The SCHMIDT® Probe Ball Valves are designed in a way so that the sensor can be quickly installed into the pipe and removed ven in case of existing pressure.



SCHMIDT® Technology - simply a question of better measurement

Specifications

Technical data
Pressure resistancePN 20 /32 / 40 (ball valve)
Inner diameter 1" / 1 ¼" / 1 ½" / 2"
MediumAir; non-agressive gases (class 2)
Operating temperature-20 … +120 °C
Installation in pipesInside threads
Installation of sensorinside thread G ½ for compression fitting of sensor
MaterialHousing: Brass, nickel-plated
Ball: Solidely chromed bras
Sealing: PTFE
Weight:
- Probe ball valve
- Ball valve

500 / 900 / 1.250 / 1.800 g
300 g

For larger pipe diameters from DN 65 the use of a SCHMIDT® Ball Valve with welded socket is recommended.

The SCHMIDT® Flow Sensor is inserted into the pipe through the ball valve.

Subject to technical changes.

Order information

SCHMIDT® Probe Ball Valve 1" inside thread, PN 32 connection

flow sensor: ½" inside thread, incl. plug and chain

Article number 530 940



SCHMIDT® Probe Ball Valve 1 ¼" inside thread, PN 20 connection

flow sensor: ½" inside thread, incl. Plug and chain

Article number 530 941



SCHMIDT® Probe Ball Valve 1 ½" inside thread, PN 20 connection

flow sensor: ½" inside thread, incl. Plug and chain

Article number 530 942



SCHMIDT® Probe Ball Valve 2" inside thread, PN 20 connection

flow sensor: ½" inside thread, incl. Plug and chain

Article number 530 943



SCHMIDT® Ball Valve, ¾" inside thread, PN 40 with thread adapter on ½" compression fitting

Article number 532 355

Accessories

Mounting and fixing technology

DescriptionArticle-Number
Welded socket steel, outside thread ¾", 5 pieces per pack531 200
Welded socket stainless steel, outside thread ¾", 2 pieces per pack531 201
