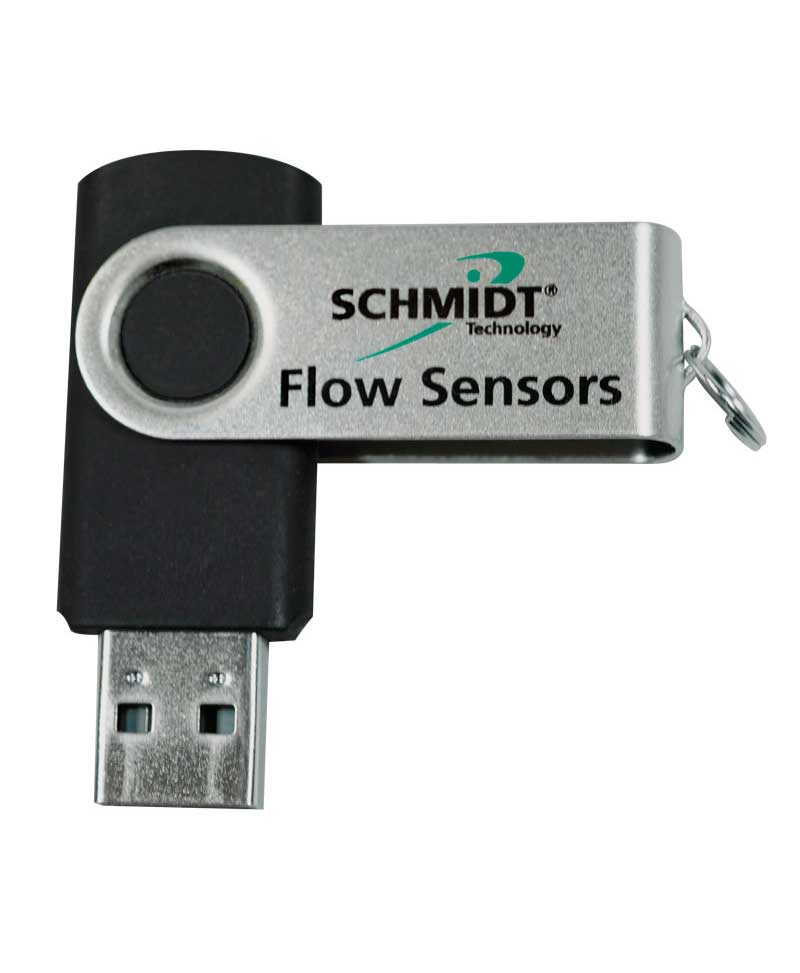

SCHMIDT® PC Programming Kit

With the SCHMIDT^® PC Programming Kit, SCHMIDT^® Flow Sensors with integrated module interface, such as the IL 30.0xx MPM, Mini-IL or SS 20.715, can be parameterised by cable via a standard Windows PC.

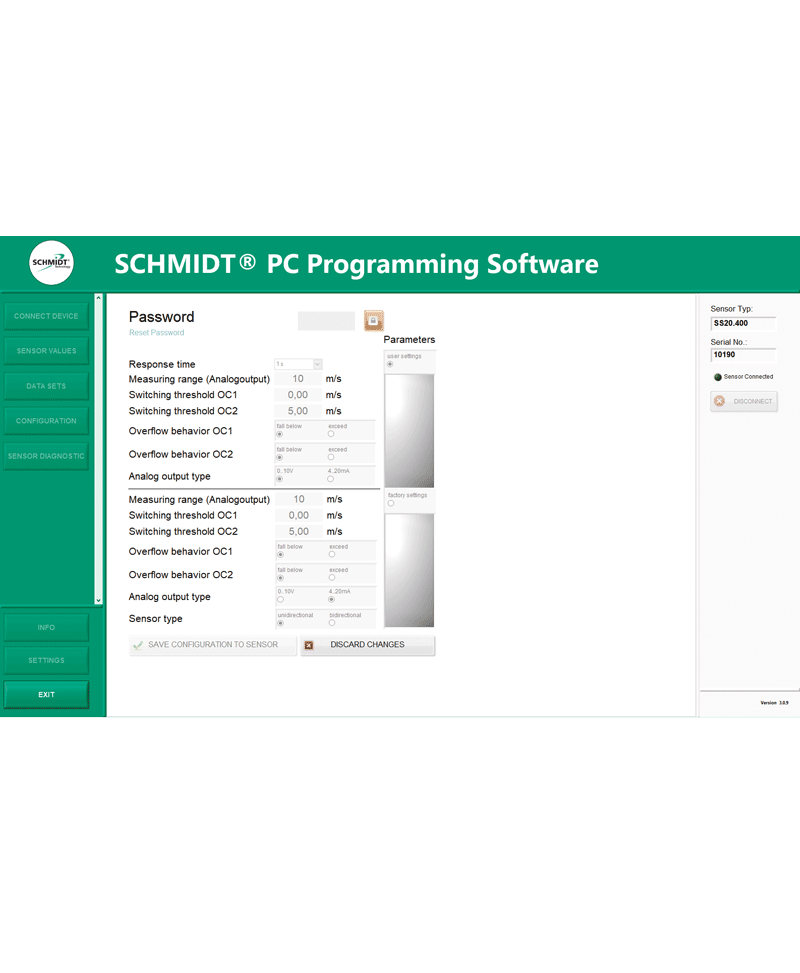

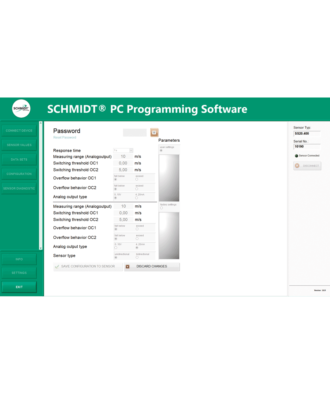

The following parameters can be adapted:

Sensor name
Analogue outputs (scaling)
Damping (4 levels)
Units of measurement (flow and temperature)
Pulse value of pulse output
Toggling module interface to Modbus operation

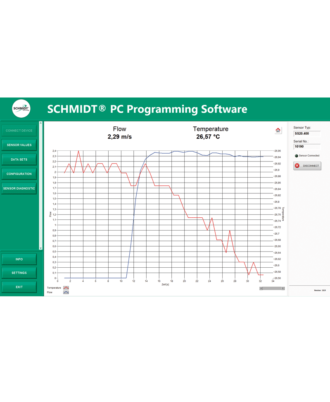

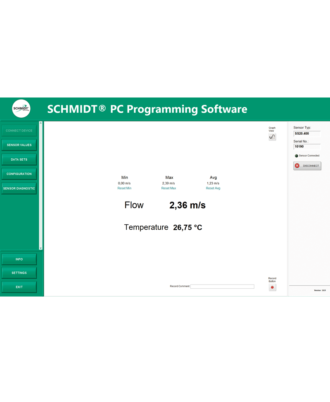

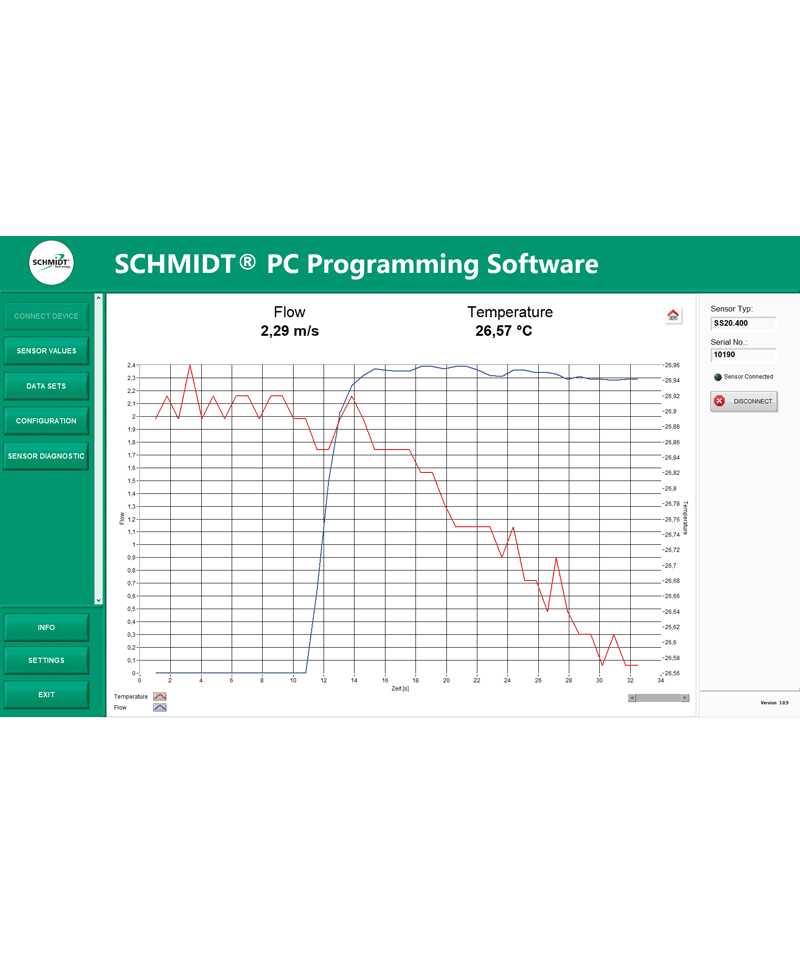

In addition, real-time data can be displayed and recorded, and sensor diagnostics can be performed.

System requirements:

A Windows-based computer (PC, laptop, tablet) with an USB interface is required to operate the SCHMIDT^® PC Programming Kit.

* Windows version: From 7 upwards

Data interface: USB, type Standard-A (2.0 and higher)

An active internet connection is required for the installation as well as the use of the full functionality of the SCHMIDT^® PC Programming Kit.

Art.-No. 564 710

SCHMIDT Technology – simply a question of better measurement

add to watch list

Technical data
Downloads

Technical data

PC requirements
Operating system	Windows 7 and higher
Application interface	SCHMIDT^® PC-Programming Software (Modbus operation: Version 4.0.0 of higher)
Programming cable (PC Prog. Kit)
Operating current	< 100 mA

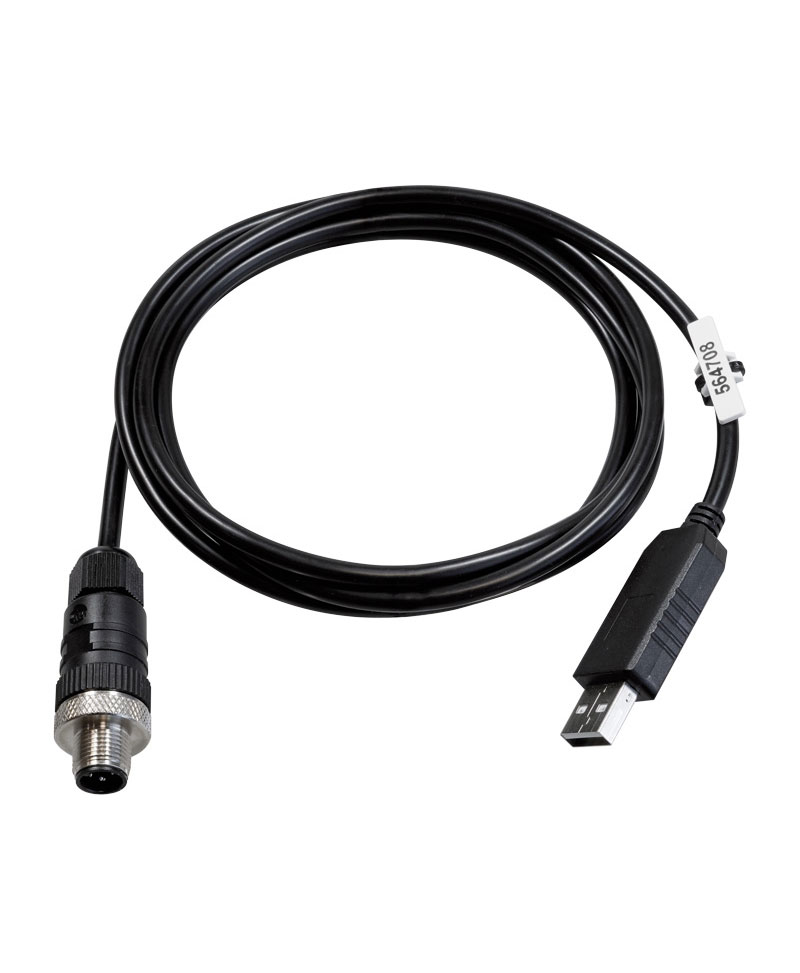

Electrical connection	Cable: To / at sensor: Socket plug M12 (A-coded), male, 4-pin PC: USB, type A (2.0) Sensor: Socket plug M12, male, 4-pol, A-coded PC: USB, type A (2.0)
Length	1.5 m
Weight	150 g
Operating temperature	0 … +60 °C
Storage temperature	-25 … +80 °C
Relative humidity	Non-condensing (≤ 95 % rH)
Protection type	IP65 (connector of sensor)
Protection class	III (PELV)
Sensor
Model	SCHMIDT^® sensor with integrated module / Modbus interface
Operating	Supply voltage (24 VDC / 200 mA) of sensor connected
