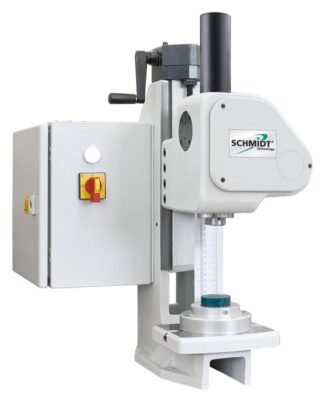

SCHMIDT® ElectricPress with PressControl 75

Nowadays it is state of the art to use electric drives in assembly technology. The solid mechanics from SCHMIDT Technology also use this drive technology to operate assembly presses for use in the industrial production environment.

With the SCHMIDT^® PressControl 75 control, the ElectricPress 43/45 can easily be parameterized. This enables quick commissioning or conversion to other products. The combination can be used in manual workstations as well as in automation solutions.

Real-time process monitoring
High energy efficiency
Easy integration
Reproducible driving profiles
All-electric drive
Simple parameterization minimizes commissioning time
Fast changeover processes thanks to accessible driving profiles
Increase in flexibility
Cost reduction of tools and their wear and tear through free, precise positioning
No stick-slip effect, therefore an optimized assembly process compared to pneumatic drives, especially at low speeds
The low noise level provides a stress-free work environment

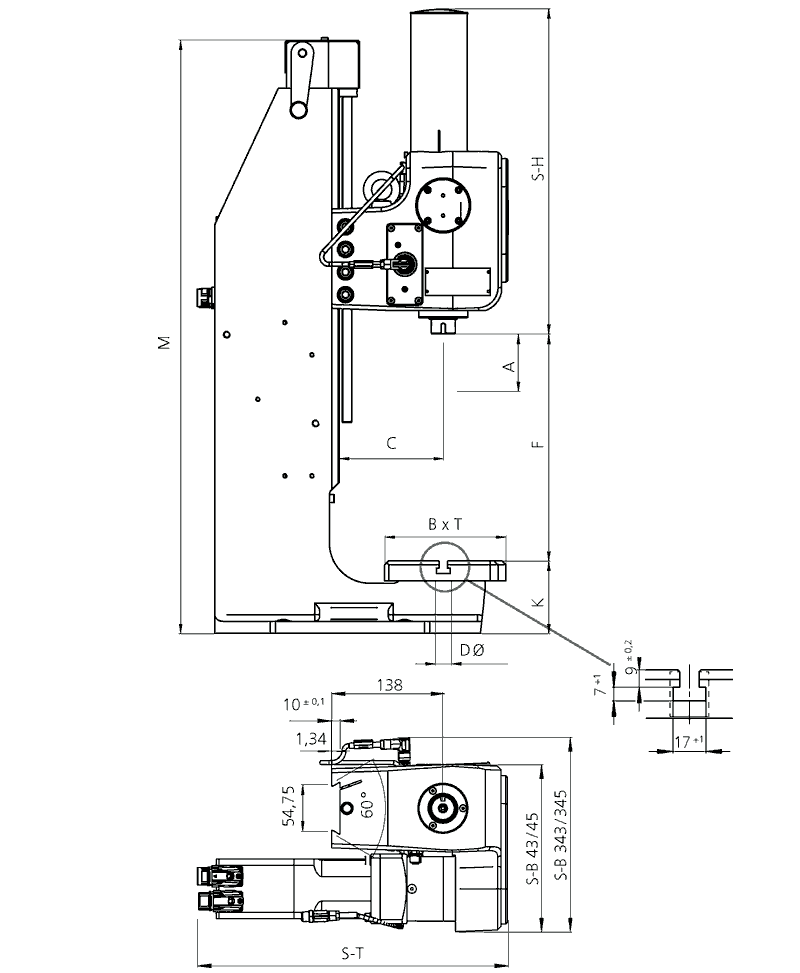

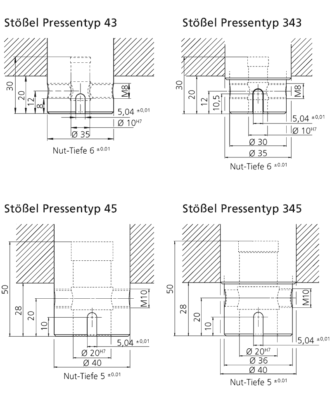

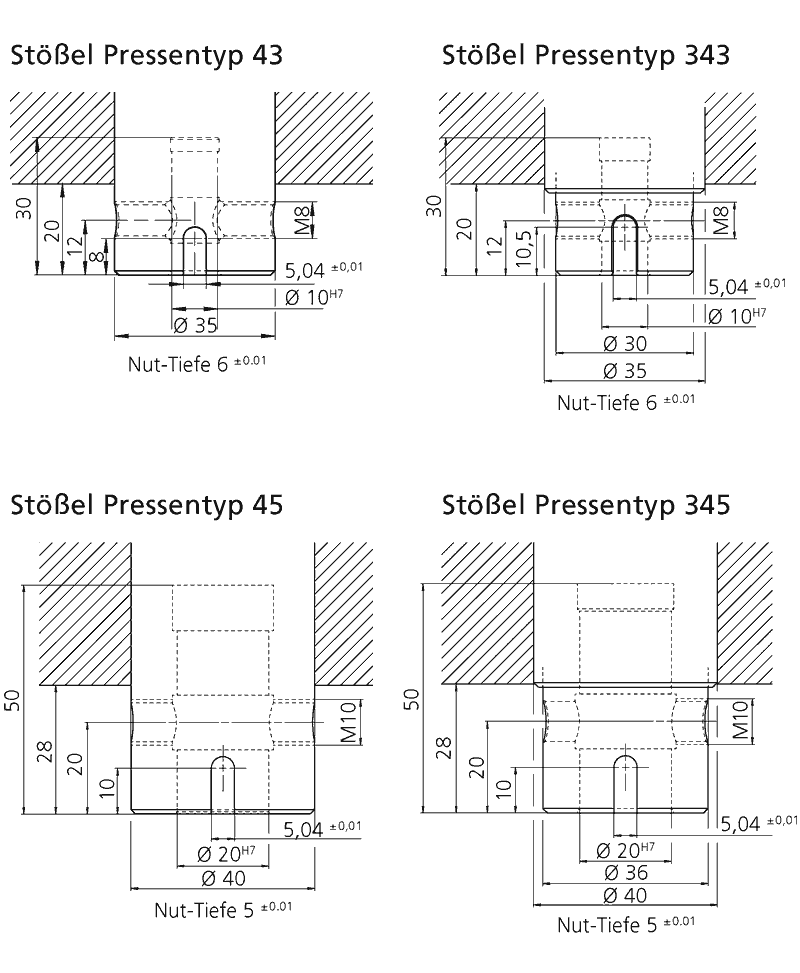

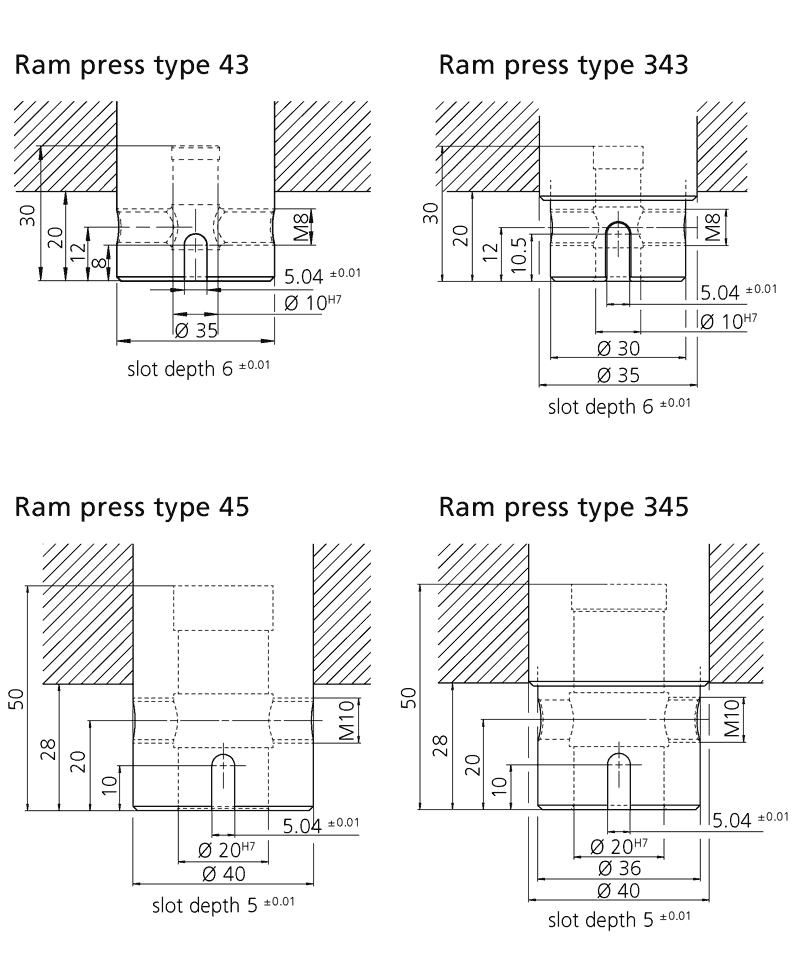

Technical Data

Press type			43	45
Force F max. ¹⁾		kN	4	10
Force F at 100 % duty cycle ²⁾		kN	2,5	6
Ram stroke	A	mm	100	150
Ram speed max.		mm/s	200	200
Drive resolution		µm	< 1	< 1
Throat depth	C	mm	129	129
Decibel level		dB A	60	60
Power supply – Motor power – Logic unit			200 – 240 V AC / < 6 A 24 V DC / 0.5 A	200 - 240 V AC / < 10 A 24 V DC / 0.5 A
Working height frame 7-420 ³⁾ Working height frame 7-600 ³⁾	F	mm	62 – 420 100 – 610	150 – 360
S-H x S-B x S-T		mm	402 x 207 x 385	530 x 245 x 410
Weight		kg	36	59
