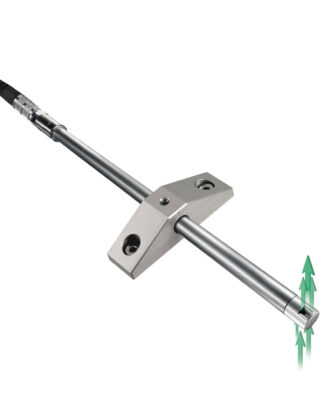

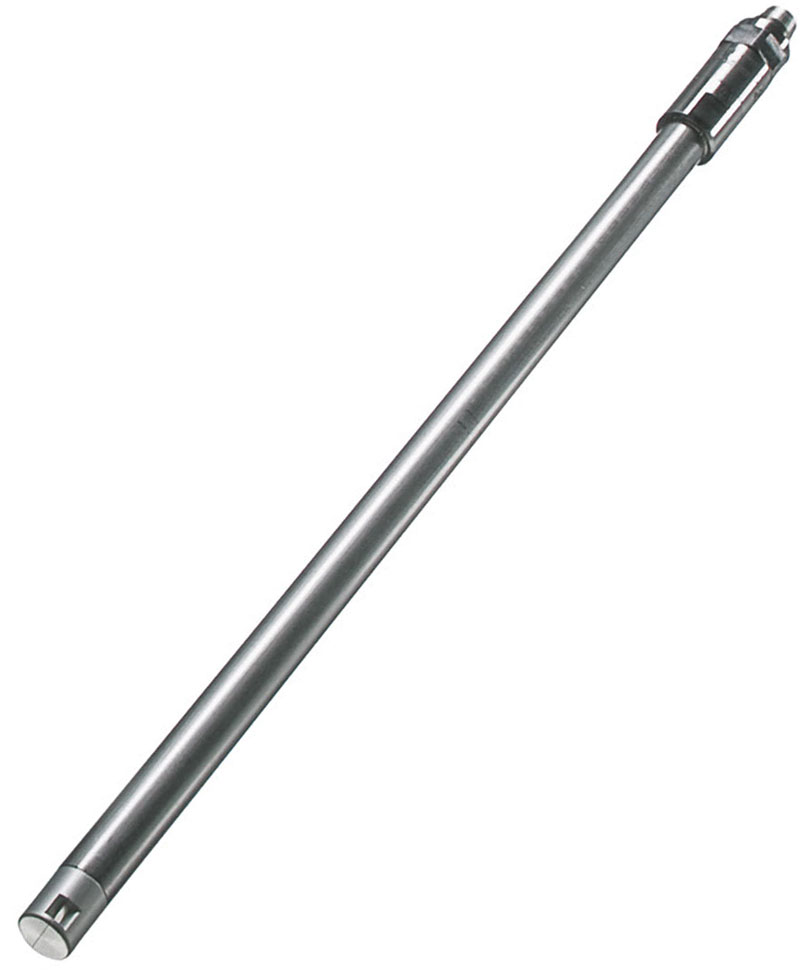

SCHMIDT® Flow Sensor SS 20.400

Thermal flow velocity sensor for uni- or bidirectional measurement of air and gases with simultaneous detection of flow direction.



  • Thermopile head (very fast response time)
  • Flow velocity and switching signals
  • Probe length 130 … 300 mm
  • Measuring ranges 0 … 1 m/s to 0 … 20 m/s
  • Bidirectional measurement (optional)
  • Detection of flow direction (optional)
  • Optimized adjustment for LF-applications (optional)
  • Sensor programming (optional)
  • Cleanroom sensor
  • Extremely compact (electronics is integrated in sensor tube)
  • Sensor element protected against mechanical stress
  • Linear analog output for measured flow velocity
  • Two switching outputs to signal flow direction and threshold



  • Clean rooms and pharma
  • Laminar flow monitoring in flow boxes
  • Monitoring of cleanroom overflow
  • Cooling air monitoring
  • Flow measurement in test benches



SCHMIDT Technology – Simply a question of better measurement

add to watch list

Specifications

Technical data
Measuring quantityStandard flow velocity wN, based on standard conditions 1)
Measured mediumClean air or nitrogen, additional gases on request
Measuring range wN(±)0 … 1 / 2.5 / 5 / 10 / 20 m/s (uni- or bidirectional)
Lower detection limit wN(±)0.05 m/s
Measuring accuracy
Standard wN±(3 % of measured value + [2 % of fmr; min. 0.05 m/s]) 2)
High precision (optional) wN±(1 % of measured value + [2 % of fmr; min. 0.04 m/s]) 2)
Response time (t90) wN1 s (configurable: 0.01 ... 10 s)
Operating temperature
Sensor0 … +60 °C
Storage temperature-20 … +85 °C
Material
Sensor headStainless steel 1.4404
Sensor tubeStainless steel 1.4404
Plug-in connector, nut screwStainless steel 1.4404
General data
HumidityMeasuring mode: Non-condensing (< 95 % RH)
Operating pressureAtmospheric (700 … 1.300 hPa)
Supply voltage12 … 26.4 V DC
Current consumptionTypical < 35 mA (max. 150 mA, current of switching outputs included)
Analog output wN0 … 10 V (RL > 10 kΩ; CL ≤ 10 nF; short-circuit protected)
4 … 20 mA (RL < 300 Ω; CL ≤ 100 nF)
Switching outputs2 x open collector (at GND), current-limited and short-circuit protected, configurable
-Channel 1 (OC1): Flow direction or threshold value
- Channel 2 (OC2): Threshold value
- External switching voltage / current: Max. 26.4 V DC / 55 mA (typ. 50 mA)
- Hysteresis: 5 % of threshold value (min. ±0.05 m/s)
Electrical connectionPlug-in-connector M9, male, 7-pin (shielded), screwed
Maximum cable lengthVoltage interface: 10 m; current interface: 100 m
Mounting position±3° relative to flow direction (uni- or bidirectional)
Protection typeSensor probe: IP66; electrical connector: IP67 (with correct attached cable)
Protection classIII (SELV) or PELV (EN 50178)
Sensor length L130/200/300 mm
WeightApprox. 60 g max. (L = 300 mm)

1) Standard conditions: TN = 20 °C and pN = 1,013.25 hPa

2) Related to adjustment reference; "fmr" = final measuring range

Subject to technical changes

Order information

 DescriptionArticle-Number
Basic sensorSCHMIDT® Flow Sensor SS 20.400, thermopile head
(also available as: ATEX version (cat. 3G, zone 2; please refer to SS 23.400 ATEX)		518 210 -XYDZR-P
 Options
Mechanical typeSensor length 130 mm(only available with 0…10V output signal) 1
Sensor length 200 mm 2
Sensor length 300 mm 3
Measurement rangeMeasurement range 0 … 1 m/s  1
Measurement range 0 … 2.5 m/s  2
Measurement range 0 … 5 m/s  3
Measurement range 0 … 10 m/s  4
Measurement range 0 … 20 m/s  5
Measurement direction, adjustment accuracy and calibrationUnidirectional – standard adjustment   1
Unidirectional - default adjustment with factory calibration certificate   6
Bidirectional – standard adjustment   2
Bidirectional - default adjustment with factory calibration certificate   7
Unidirectional – high precision adjustment incl. factory calibration certificate   3
Bidirectional – high precision adjustment incl. factory calibration certificate   4
Unidirectional LF - optimized for Laminar Flow application, high precision, with factory calibration certificate (only for measuring range 1 m/s)   5
Analog output0 … 10 V    1

4 … 20 mA (not for sensor length 130 mm)    5

Representation of directionBidirectional switching output OC 1     1
Bidirectional: halved analog signal 0 m/s = 12 mA / 5 V     2

Unidirectional     3
Sensor-programmingFactory setting       S
Customer-specific programming of switching polarity, splitting signal and response time       K

Accessories

Connection technology

DescriptionArticle-Number
Coupler socket, 7-pin with soldering sleeves for cable Ø 0.14 mm2535 278
Connection cable with coupler socket, 7-pin, 5 m length, open cable ends, material PUR535 279
Connection cable with coupler socket, 7-pin, length selectable (2 … 100 m; 1 m steps), open cable ends
open cable ends (length 2 … 100 m; 1-m-steps)		505 911 - 4
Connecting cable with angled socket, 7-pin, 10 m length, open cable ends, material PUR535 281
Power supply unit: output 24 V / 1A DC, supply voltage 115/230 V AC (strip terminal)535 282
Plug-in power supply 24 VDC / 1 A output, 100-240 VAC, 2 m cable length, M12-plug connector (screwed, only usable with "Interface Splitter 4xx")571630 + splitter

Mounting and fixing technology

DescriptionArticle-Number
Wall mounting flange, stainless steel, clamping ring PTFE520 181
Compression fitting, stainless steel, G½, atmospheric pressure532 160
Wall mounting bracket, aluminium anodized503 895
Mounting flange, stainless steel 1.4404551 740
Assembly kit for pipe assembly suitable for MD 10.010/10.015 including pipe clamps and collar for adjustment to pipe diameter531 394

Measured value display

DescriptionArticle-Number
SCHMIDT® LED display MD 10.010 in wall housing to show volume flow and flow velocity, 85 … 250 V AC and sensor power supply527 320
SCHMIDT® LED display MD 10.010, similar to 527 320 but with 24 V DC voltage supply528 240
SCHMIDT® LED-display MD 10.015; similar to 527 320 but with additional sum function and second measuring input527 330
SCHMIDT® LED display MD 10.015, similar to 527 330 but with 24 V DC voltage supply528 250

Miscellaneous

DescriptionArticle-Number
Calibrator MK 40.415 - Set (8 / 12 / 16 mA)546 741 - 4
