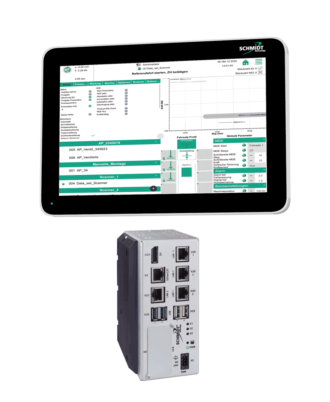

SCHMIDT® PressControl 7000 RT with 700 HMI

SCHMIDT® PressControl 700 HMI

  • Display unit for visualizing the processes
  • Setup and parameterization functions via "drag & drop"



The SCHMIDT® PressControl 7000 RT for single workstations for the control and monitoring of pressing and joining processes. In addition to precise assembly tasks, the fast acquisition of extensive process data and bidirectional data exchange is becoming more and more important.



The SCHMIDT® PressControl 7000 RT real-time controller communicates with the process components via the high-performance and fast field bus EtherCAT with a transmission rate of 100 Mbit/s and a transmission speed of 0.5 ms. With this the press control meets the requirements for fast processing of large data volumes. The leap into other fieldbus worlds is realized by using optional fieldbus gateways.



Process visualization takes place directly on the PressControl 700. Via the Ethernet interface, the control communicates with MES systems and external PCs as well as PRC DataBase and PRC FileXchange software.

The press control system is optimally designed for SCHMIDT® press systems. Thanks to the integrated PLC, process visualization, the best possible compatibility and performance is achieved. All components are tested and matched to each other in the network and are therefore ready for immediate use.



SCHMIDT® PressControl 700 HMI

  • display unit for visualizing the processes
  • setup and parameterization functions via "drag & drop"

Technical Data

PressControl 7000 RT
Industrial PC

Intel E3990 processor
2 GB main memory
16 GB on-board Flash (eMMC)
4 GB CFAST
Linux operating system

Interfaces1 x Display Port
2 x USB 2.0
2 x USB 3.0
3 x Ethernet, RJ45 (LAN1 via integrated switch on 3 ports)
1 x Ethernet, RJ45 (LAN2)
1 x EtherCAT, RJ45 Universal fieldbus
Integrated compartment for housing a Hilscher netJACK module
Power supply24 V DC (via 3-pin plug)
Current consumption1 A
Weightapprox. 0.73 kg
Ambient temperature

0 °C … +65 °C

Humidity0 … 90 % relative humidity (not condensing)
IP ratingIP 20; PressControl 7000 RT placed in electrical cabinet
PressControl 700
Industrial PCIntel E3990 prozessor
2 GB main memory
16 GB onboard Flash (eMMC)
4 GB CFAST
Linux operating system
Interfaces 2 x USB 2.0
2 x USB 3.0
1 x Ethernet, M12 (LAN1)
1 x Ethernet, M12 (LAN2)
1 x EtherCAT-P, M8
Power supply24 V DC (EtherCAT-P)
Current consumptionmax. 1.3 A
Weightapprox. 1.9 kg
Ambient temperature    0 °C … +40 °C
Humidity0 … 90 % relative humidity (not condensing)
IP ratingIP 54
